DCOM-ISI-112G-9CH-36F-1.85 (p/n 640-1073-000)
DCOM-ISI-112G-9CH-36F-1.85 (p/n 640-1073-000)

Our Price: $15,090.00


Product Code: 640-1073-000

Description

112G Datacom ISI Board, IEEE 802.3ck, OIF CEI-112G-VSR

Channel calibration and stress testing for C2M (Chip-to-Module) and C2C (Chip-to-Chip) high speed electrical interfaces is ever more important as we reach for higher data rates.

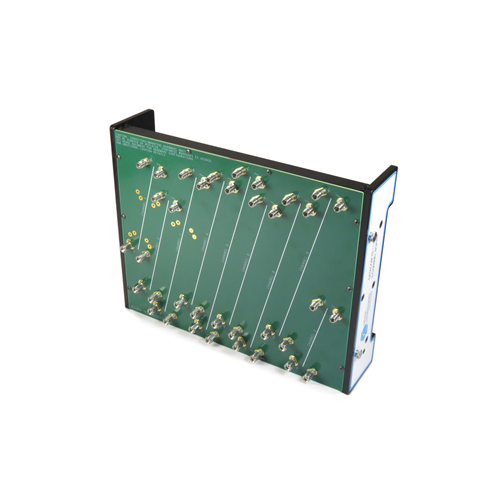

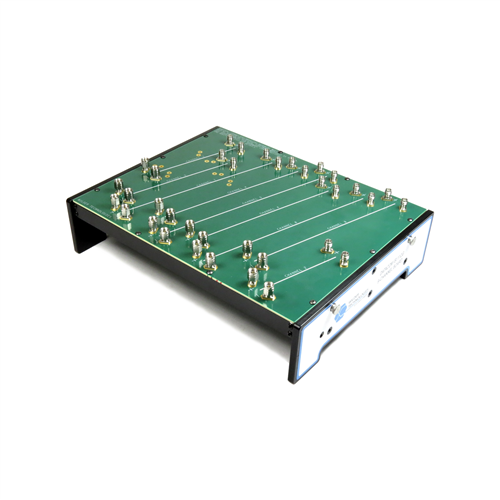

Wilder Technologies 112G (56Gbaud) ISI – Intersymbol Interference loss modeling board provides 9-channel spread above and below the specification mean and is optimal for adding channel stress and signal calibration for IEEE 802.3ck channel testing.

All 36 lower and upper 1.85mm connectors are Female.

Whether calibrating your channel or stress testing your DUT, Wilder’s Datacom 112G ISI board will suit your needs.
• Emulate channel loss for receiver testing
• Controlled laminate and layout techniques

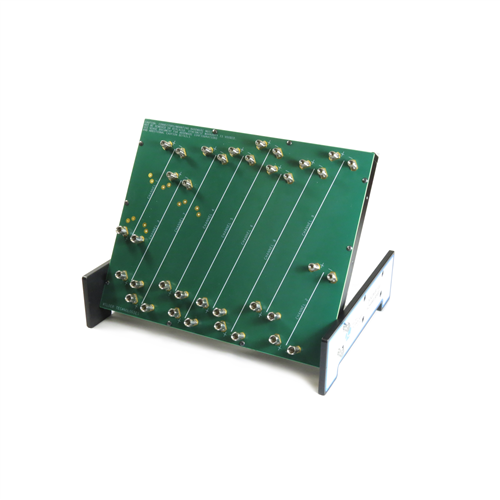

• User adjustable position within frame
• Access for proper application of torque to mated RF connectors
• Unique and specific ISI profile provided with each board
